Introduction – Defining the Problem

  • Lithium-ion cells of production level EV operate optimally within a narrow temperature range between 25 ◦C and 40 ◦C.

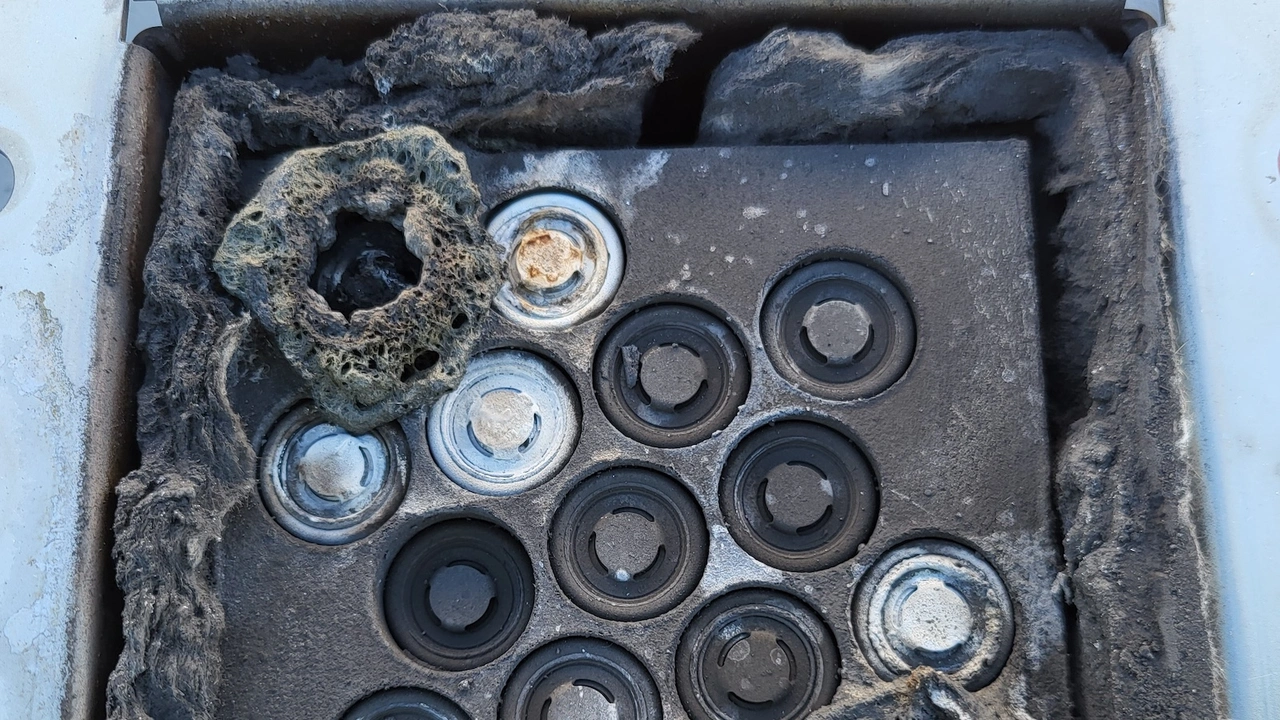

  • The main issue with Li-ion battery heat is thermal runaway, which causes rapid temperature rise, gas generation, and potential explosions.

  • A Battery Thermal Management System (BTMS) is a system designed to regulate and maintain optimal temperatures in a battery pack, ensuring safety and efficiency.

Working of a BTMS

  • A BTMS works by monitoring the battery pack's temperature and employing cooling mechanisms to maintain optimal conditions.

  • It uses components like fans, pumps, or thermoelectric devices to circulate air or liquid coolants, effectively dissipating heat.

  • Active BTMS uses external energy and components, while passive BTMS relies on materials and design features


Assumptions


Problem Setup

  • The flow is incompressible (constant density).

  • The flow is laminar.

  • The system involves prismatic battery cells.

  • The domain is a 2D top view.

  • The battery material is isotropic.

  • The influence of buoyancy is ignored.

  • Convection and conduction are the primary heat transfer modes; radiation is neglected.

  • The cells are treated as constant heat sources.

Fluid Flow

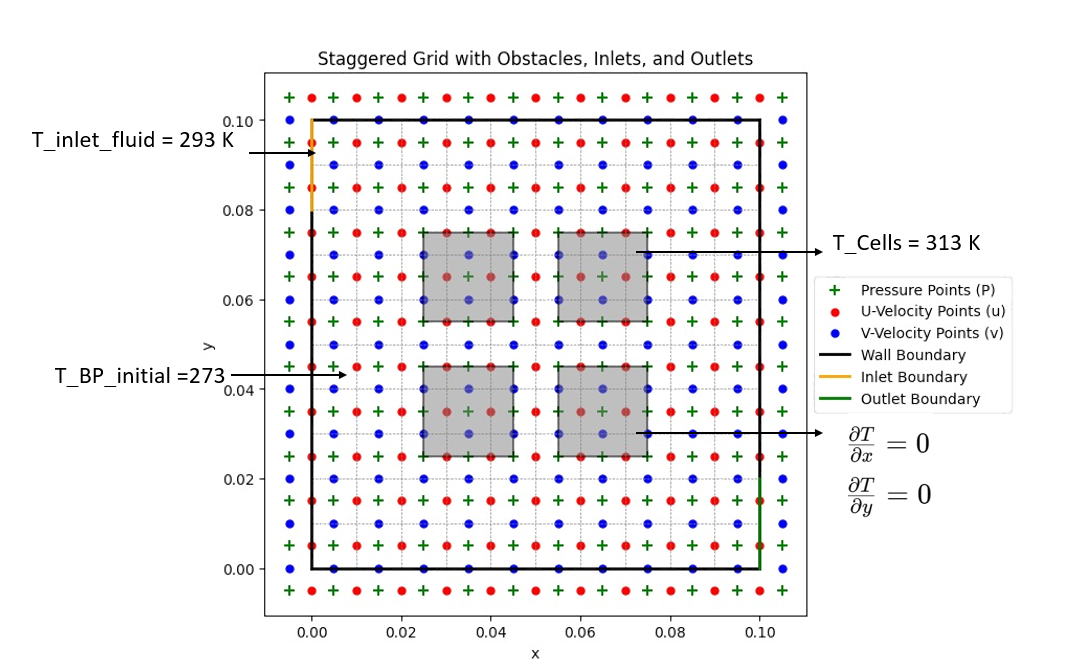

  • We use a staggered grid with ghost nodes, defining u, v, P, and T as the primitive variables.

  • The Navier-Stokes equations are solved using:

    1. The Pressure Poisson equation to simulate

    fluid flow.

    2. The Energy equation is solved simultaneously,

    to account for heat dissipation.







































































































































































































Initial and Boundary Conditions ( for Velocity and Pressure)



































































































































Initial and Boundary Conditions ( for Temperature)






























































































































































































Parameters

















































Density (rho) - kg/m3
Specific Heat (Cp) - J/kg.K
Thermal Conductivity (k) - J/m.K.sec


































Parameters for Fluids and Battery Cells


















































Battery Cell (LiFePO4)


















































2047
1605
0.15

















































Fluid-1 (Novec - 7000)


















































1400
1300
0.075

















































Fluid-2(Air)


















































1293
1005
0.025















































































Fluid-1 (Novec 7000)



































Fluid-2 (Air)



































Results


































Immersion cooling vs Air Cooling


































Immersion cooling mitigates thermal runaway risks by enabling superior heat dissipation compared to air cooling















































































Temperature & Velocity -Contour Plots for Various Cell Spacing



































Increasing battery spacing enhances thermal performance by reducing final battery temperature


































Cell Spacing= 0.04 m


































































































































Cell Spacing= 0.02 m


































Cell Spacing= 0.04 m
